Home Products DGP3013

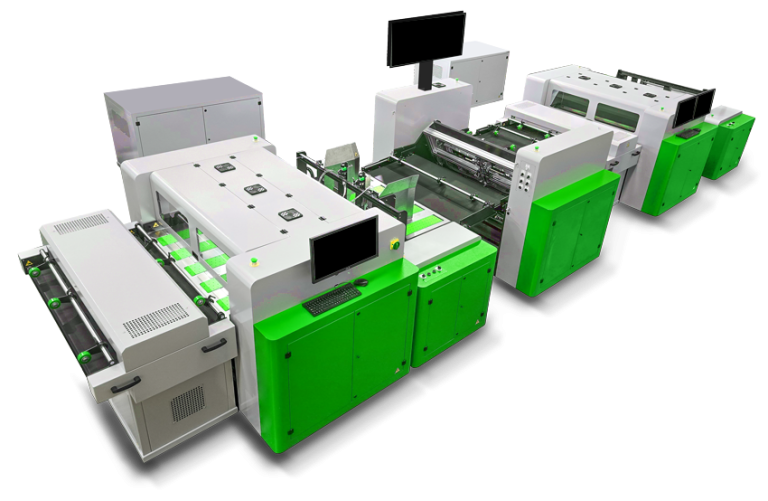

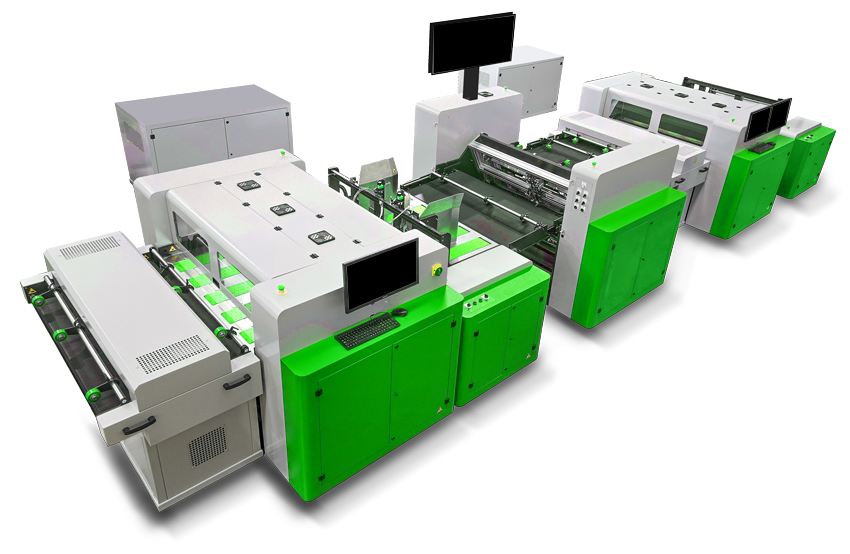

Corrugated Box Making Machine

DGP3013

Software control, precise hydraulic positioning, and automatic rotation for seamless operation, alongside infrared safety barriers and a 70cm stack capacity for efficient, safe handling of various board sizes.
  • Maximum Eeed Stacking Height 700 mm
  • 1070 mm Max Printing Width
  • Max.Media Width 1300 mm
Get a Quote

Brochure
  • OEM Custom
  • Fast And Safe Logistics

  • Ink

    Pigment Ink

  • Color

    CMYK
    (4 Colors)

  • Print Width

    1070 mm

  • Print Speed

    0-1.6 Meters
    9-18-27 m/min

Features

  1. Servicing side doors

    Safe operation Quick opening Enable easy access for servicing

  2. Two drying units

    Each print station features its own drying unit, ensuring stain-free prints.

  3. Sliding stations for easy servicing

    Accessing print units is made easy by the sliding tables, which offer full-width access to the printing areas.

  4. Media pressure & Vacuum

    High vacuum capabilities enable precise media fixation for accurate print registration while ensuring uniform media pressure across all modules through the use of non-crush wheels. Adjustable pressure depending on the substrate.

Applications

Print Media

  • Corrugated Paper
  • Honeycomb Paper
  • Kraft Paper
  • Letter Paper
  • Thin Wooden Board

Daily Applications

  • Food Packaging Box
  • Shipping Box
  • Wine Packaging
  • Bakery & Cake Packaging

Tech Specs

DGP3013
Resolution High/Medium/Low resolution : 1200 x 1200 dpi/600 x 1200 dpi/300 x 1200 dpi
Printing Speed High/Medium/Low printing speed: 9m/minute/18m/minute/27m/minute
Ink Water-based pigment / Water-based dye
Ink Capacity 5 liters per color
Colors CMYK (4 colors)
Media Specs
Media Cardboard, 2mm to 20mm thickness
Feed Width Between 300mm and 1300mm
Feed Length Between 326mm and 760mm
Maximum Feed Stacking Height 700mm
Dimensions
Lenght 10133mm
Width 5106mm
Height 1600mm
Weight 5800kg
Power Consumption
Voltage 400V AC +10%
Phase, Frequency 3 Phases + Neutral + PE, 50/60Hz
Energy Consumption 75000 Watts
Power Plug CEE 3P+N+PE 400V (125Amp.)
Software
Internet Connection 24/07 Required
Controller RIP ERGOSOFT
Interface PC-based
Platform PC-based with Windows
Operating Environment
Operation 20°C - 30°C
Humidity 40 to 60% RH (non-condensing)

FAQs

Explore our FAQs for detailed information on ordering, shipping, and product support.
Contact Us
How are orders packed and shipped ?
For custom order, we can design full-color custom packaging to match your brand if requires. Most shipments include boxes packed inside an outer carton and placed on a wooden pallet or carton.
Do you have stock in your warehouse?
Yes, we maintain a well-stocked warehouse to ensure quick order fulfillment. However, stock levels may vary, so we recommend checking with our team for real-time availability.
If products have some quality problem, how would you deal with?
We prioritize quality and customer satisfaction. If you encounter any issues, please contact our support team immediately. We will assess the problem and offer a replacement, refund, or repair as needed.
Can the digital corrugated printer handle different types of corrugated board?
Yes, our digital corrugated printer is designed to handle a variety of corrugated board types, including single, double, and triple-wall boards, providing flexibility for different packaging requirements.
How does the printer ensure color consistency across different runs?
The printer is equipped with advanced color management systems that ensure consistent color reproduction across multiple print runs, maintaining brand integrity.
