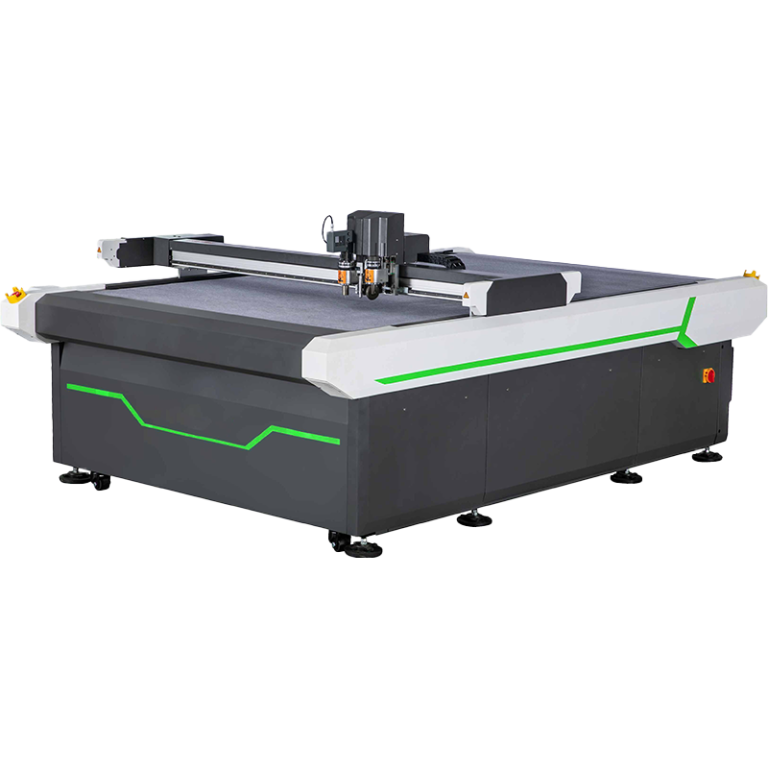

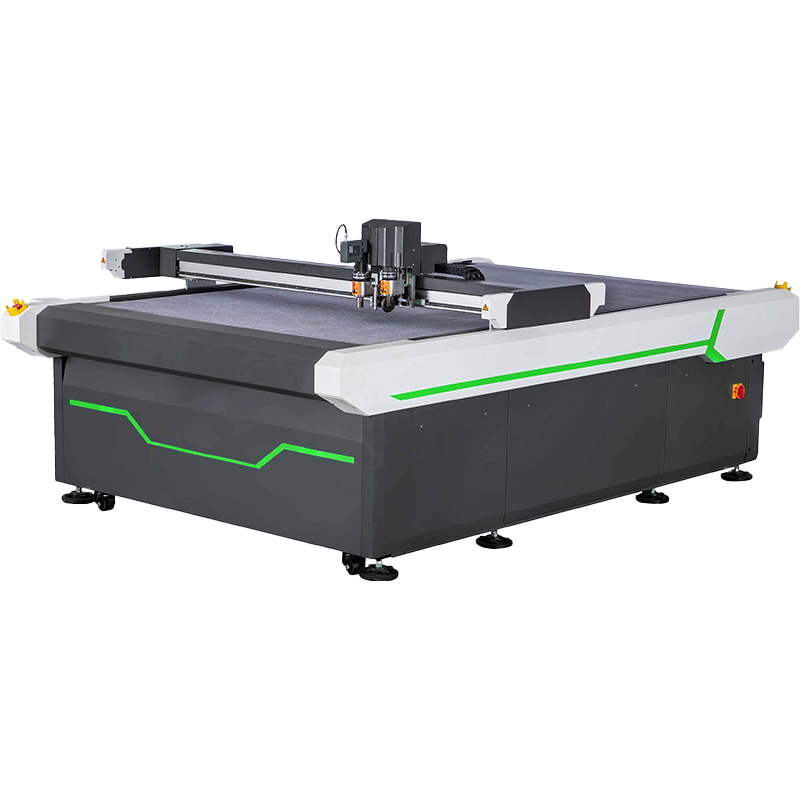

DGC 2516

Cutting Machine For Packaging Solution

Multi-axis high-speed motion control system with independent intellectual property rights.
The use of changeable tool head mode, tool head is not fixed welding integration.

Get a Quote

Brochure

OEM Custom
Fast And Safe Logistics

-

-
-

-
-
-

-
-

-
-

Features

Safety anticolli-sion
The beam working area is equipped with 360 degrees of safety anticolli-sion.
Bearing
Import bearing and synchronous belt.
Up to 8groups of heads
Two groups of heads can be replaced, up to 8 groups of heads can be installed.
Higher accuracy
90° double linear guide rail design, more stabletransmission, higher accuracy.

Applications

Print Media

Corrugated Paper
Honeycomb Paper
Kraft Paper
Letter Paper
Thin Wooden Board

Daily Applications

Corrugated BOX
Corrugated BOX
Corrugated BOX
Corrugated BOX

Tech Specs

	DGC-1310	DGC-1815	DGC-2516
Overall dimension	1300*1000mm	1800*1500mm	2500*1600mm
Overall dimension	270018001350mm	320023001350mm	390024001350mm
Operation properties	It can be connected with any CAD software,and computer aided design and cutting can be carried out simultaneously
Cutting materials	Various corrugated board,plastic corrugated board,Yellow cardboard,red cardboard,white cardboard,gray cardboard,PVC board,Foam board,EVA,KT board,sticker,gasket,etc
Standard	Oscillating tool,creasing wheel,pen,cursor
Optional	Universal cutting tool,Kiss cut,Foam cut tool
Cutting thickness	≤50mm(according to different materials)
Speed	1000mm/s
Fixing Method	Vacuum suction
Repeat precision	≤0.01mm
Software resolution	0.025、0.01、0.1
Interface	Ethernet port
Buffer memory	1G,fast transmission for multi-page large file
Command mode	HP-GL/GP-GL
Compatible software format	Al,AutoCAD,coraldraw etc
Control panel	7 inch color touch screen
Driving system	Imported servo motor,straight rail
Voltage/Power	AC380V±10%,50HZ
Fuse	6A/30A
